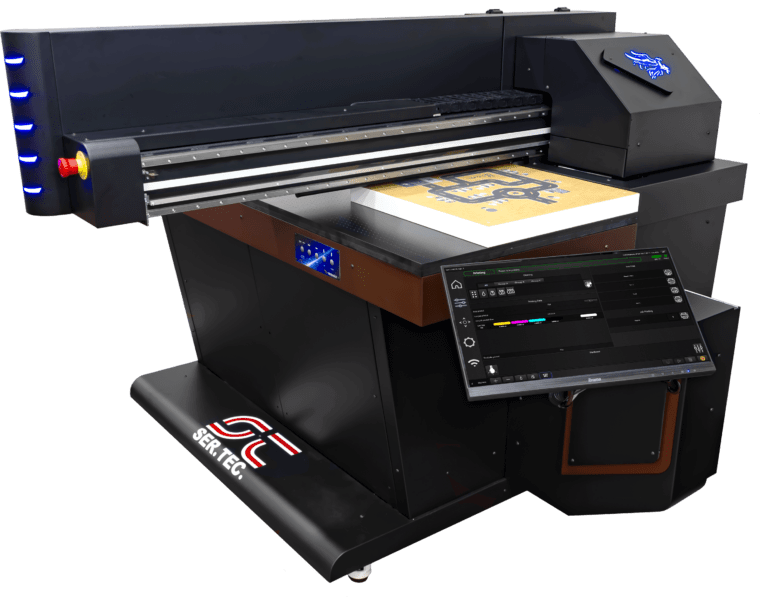

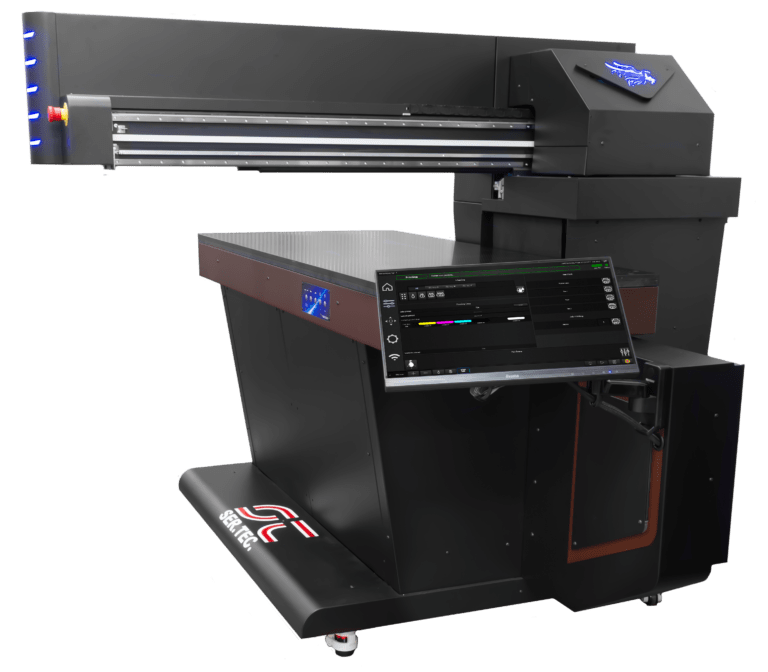

EAGLE 70/130R

Eagle 70/130R is the new medium-format digital printer in the Eagle series, with a print area of 700×1500 mm and 1300×1500 mm, and a maximum print height of 250 mm.

Material versatility: Printing on rigid and flexible materials, both transparent and opaque.
Inks: Available in UV and Hybrid versions, designed to ensure high quality, durability, and excellent adhesion on a wide range of rigid and flexible materials.
Ease of use: Intuitive control via touch screen and job management with WhiteRIP & Icaro software.

Main Features

Printable materials: Printing on ceramic, glass, leather, metal, plastic, and transparent materials, with high quality and durability.
Advanced drying system: Adjustable IR lamp drying for Hybrid inks or LED technology for UV LED inks, ensuring fast times and long-lasting results without the need for additional processing.
Open 3-sided design: Facilitates loading and unloading during printing, useful for bulky or large-sized materials.
Customizable options: Includes suction table, rotating system for printing on cylindrical objects, and the possibility of integration with automation systems.

Eagle 70 R: The perfect solution for high-quality prints on rigid materials

The printer uses Ricoh Gen 5 printheads, ideal for high-resolution digital prints on rigid materials such as wood, plexiglass, aluminum, and forex.
The advanced printheads ensure sharp details and vibrant colors, for exceptional results.
The machine's robust structure ensures efficient and continuous production, without interruptions.
Perfect for custom projects, it meets the needs of an increasingly demanding market

Technical specifications


Printing Technology	Up to 8 Ricoh Gen 5 printheads.
Resolutions	Min:300 x 150 dpi Max: 1200 x 2400 dpi
Max. printable area 70R ----------------- Max. printable area 130R	Width: 700mm Length: 1500mm ----------------- Width: 1300mm Length: 1500mm
Table dimensions 70R ----------------- Table dimensions 130R	Width: 1350mm Length: 1650mm ----------------- Width: 750mm Length: 1650mm
Maximum material thickness	250mm
Inks	DPI UV Led \| DPI Hybrid
Available colors	CMYK, White, Glossy
Power Supply	AC 240V 50/60Hz
Optional	Round system, integration with automation systems, customization, vacuum table or blowing table

Inks

UV LED Inks: Designed to deliver high-quality prints on a wide range of materials, weather-resistant, with vibrant colors and strong white coverage for transparent or dark materials. The semi-flexible inks allow printing on both rigid and flexible surfaces, including plastics and leathers. The recirculation system prevents sedimentation and reduces maintenance costs.

Hybrid Inks: Perfect for printing on complex materials such as metal, glass, leather. Offering superior print quality, they deliver excellent results on both rigid and flexible surfaces. The ink recirculation system prevents sedimentation, reducing maintenance and optimizing the production process.

WhiteRIP

The Eagle R are equipped with the WhiteRIP & Icaro software, designed to optimize industrial printing

Advanced color management: Custom color profiles and color replacement for precise prints.
White base optimization: Automatic and optimized generation of the white base for transparent or dark materials.
Template function: Virtually divides the print bed into panels for precise placement, reducing errors and waste.
Versatility: Support for spot channels, variable data management, hotfolders, and label creation.

WhiteRIP allows sending jobs directly from the print queue via the integrated touch screen, improving productivity and simplifying process management.

Custom Printers

We can create custom printers to meet specific workflow needs, integrate with automatic printing lines, support loading/unloading systems, or handle extra-large materials.

Eagle 130 with vacuum cups

This printer is equipped with vacuum cups to hold and straighten wooden panels, making them printable

Eagle Line series

This complete line includes preheaters and an IR dryer, as well as a conveyor system for material loading

Eagle 130 Roll to Roll

This Eagle UV 130 has been modified to allow not only flatbed printing but also roll-to-roll printing for roll materials.
