Printing Solutions for Glass

Digital – Screen Printing – Equipment

Digital Printer

Main Features

They are based on Hybrid technology, developed by Ser.Tec, featuring:

Ricoh Gen 5 printheads
Inks specifically designed for glass printing, ensuring optimal adhesion and high print quality
Halogen lamps mounted on the print heads for curing the print before passing through the oven
Possible integration with dedicated glass ovens, ensuring durability and resistance
Suction and blowing print table to facilitate the handling of heavy objects, such as glass panels
Possibility of integration with the company’s Industry 4.0 systems.

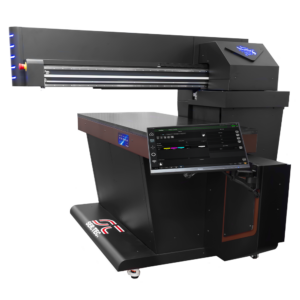

SER.TEC. Eagle 70R industrial UV flatbed printer with integrated touchscreen panel and black body with brown details.

Production Lines

Printers can be integrated into automatic production lines, connected to existing ones, and/or customized. For example, with:

Conveyor belt for inline material handling.
Option for a suction and blowing print table to facilitate the handling of glass panels, including large format ones
Sensors for automatic detection of incoming materials and their length, to automatically adjust the start and length of the print.
Possibility of integration with the company’s Industry 4.0 systems.

Inks

Hybrid Inks: Ideal for printing on complex materials such as ceramics, glass, leather and glass.
Garantendo una qualità di stampa superiore, permettono risultati eccellenti su superfici rigide e flessibili. The ink recirculation system prevents sedimentation, reducing maintenance and optimising the production process.

Software

Our solutions are equipped with softwaredesigned to optimize industrial printing. It allows jobs to be sent directly from the print queue via the integrated touch screen, improving productivity and simplifying process management.

Screen Printing Sector

Screen printing machines and main features for glass

S2

PLC management with internal SIEMENS PC
Touch screen interface
New work programs selectable and customizable.
New micrometric X.Y.Z registration system
Print stroke adjustment with self-learning system
Pneumatic clamping system
Printing table with suction in normalized alupan with holes starting from 1.2mm
Printing unit with 90° rotation for easy cleaning

S3

Usable print formats: 1000×2000 mm to 2000×4000 mm
Print thickness: 0 to 50 mm
Print Stroke Adjustment with Auto-learning
Three operating cycles: automatic with timer, single stroke with pedal, manual with keyboard
Table with suction and blowing
Frame exit for cleaning
Frame cleaning with a print head lift of 500mm

S3P Glass

Useful print formats: from 1000×2000 mm to 2000×4000 mm
Print thickness: 0 to 50 mm
Print Stroke Adjustment with Auto-learning
Three operating cycles: automatic with timer, single stroke with pedal, manual with keyboard
Table with suction and blowing
Frame exit for cleaning
Frame cleaning with a print head lift of 500mm

Custom Printers

We can create custom printers to meet specific workflow needs, integrate with automatic printing lines, support loading/unloading systems, or handle extra-large materials.
