ATOM 2513 / 2030 UV

Atom is the medium-large format UV LED printer designed for high performance, available in 2500×1300 mm and 2000×3000 mm formats:

  • Material versatility: Print on almost any type of material, including rigid, flexible, light and dark
  • High productivity: Ricoh G5 industrial heads ensure quality prints even at higher speeds
  • Zoned suction system: Powerful, modular suction table divided into independent zones to keep the substrate perfectly stable during printing
  • Anti-Crash System: Integrated anti-collision system that prevents accidental damage to the heads when lifting material
Learn more

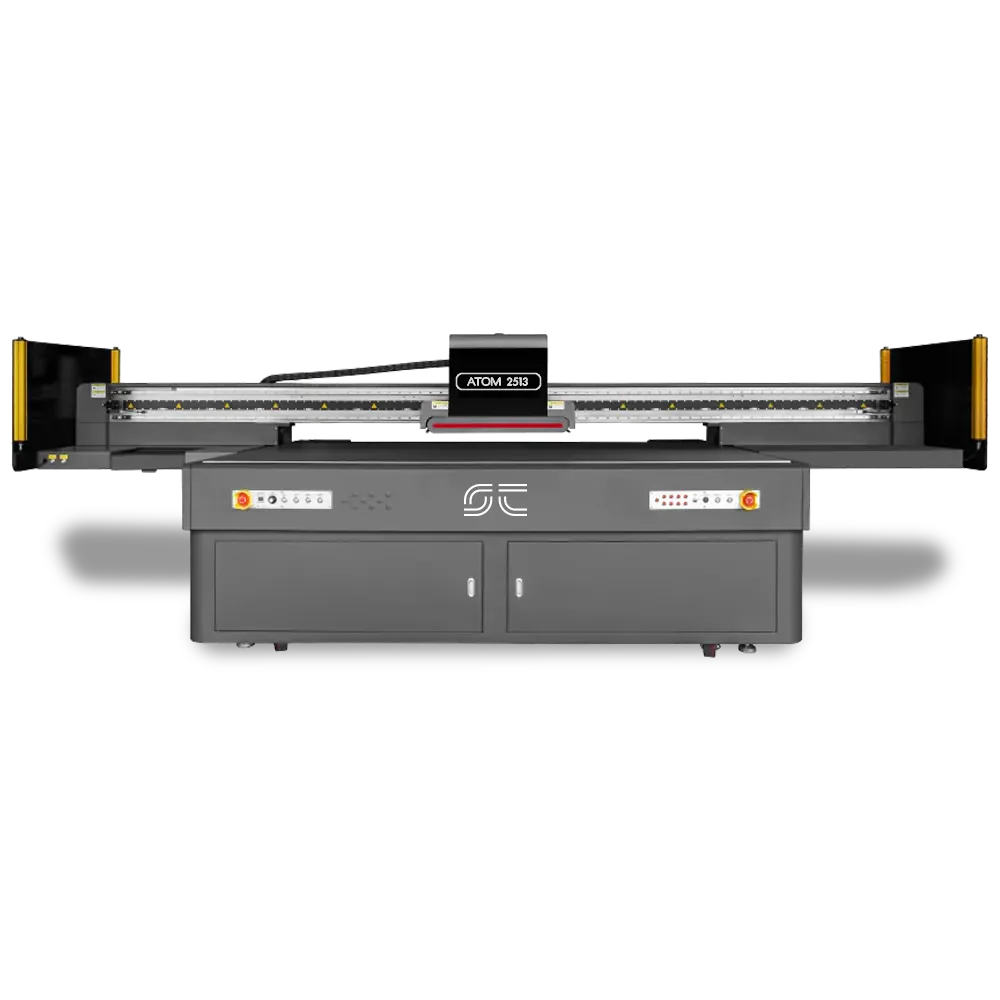

Atom 2513, fixed-bed UV flatbed printer, front view with extendable side rails

Ricoh Gen 5

Security system

Security system

Technical Specifications

Print on materials up to 10 cm thick with precise height control

Light, white and varnish inks for richer, more detailed colours

Adjustable UV LED lamps for fast and precise curing

WhiteRIP is professional print management software

Optional

Piano aspirato con microfori per il bloccaggio del materiale durante la stampa

Eagle printers feature a vacuum table that prevents warping during printing

Dettaglio dei perni di registro su piano di stampa, utilizzati per allineamento preciso del materiale.

The squaring aligns the material to the table in just a few moments. Height-adjustable and can be lowered when not in use

Schema con frecce a doppia punta di lunghezze crescenti, indica le dimensioni personalizzabili del piano di stampa

Prints on extra-large materials with a customisable 2.5-metre surface to suit your needs

Can be integrated with automatic loading/unloading systems

The printers can be configured to integrate seamlessly into Industry 4.0 systems

Technical specifications
ATOM 2513
ATOM 2030
Print heads
Ricoh Gen 5
Print Area
2500 x 1300 mm
2000 x 3000 mm
Max. Material Thickness
100 mm
Colours Supported
CYMK, Lc, Lm, White e Varnish
Vacuum table
Divisible into independent zones
Power Supply
AC 220 V, 50-60 Hz
Operating Environment
18-30 °C. Humidity 30-70%

Available Inks

UV LED inks (this version)

Designed to deliver high-quality prints on a wide range of materials, these inks are weather-resistant, feature vibrant colours and provide excellent white coverage on transparent or dark substrates. The semi-flexible inks allow printing on both rigid and flexible surfaces, including plastics and leather. The recirculation system prevents sedimentation

Hybrid inks (alternative version)

Ideal for printing on complex materials such as metal, glass and leather. By ensuring superior print quality, they deliver excellent results on both rigid and flexible surfaces. The ink recirculation system prevents sedimentation, reducing maintenance and optimising the production process
UV print on wood with tiger image in warm colours and natural texture.
UV print with relief effect of black stylised flowers on a beige background.
Blue nameplate with 3D effect embossed UV print, decorated with a detailed white mandala motif.
Decorative panel in the kitchen with a high-definition print of a landscape at sunset, installed as a back panel behind the cooker.
Kitchen wall covering with coloured tile-effect print, applied to wall between hob and wall units.
Detail of glass table with digital print of stylised butterfly in shades of blue and violet.

WhiteRIP

Atom line printers are equipped with WhiteRIP software, designed to maximise quality and productivity in industrial UV printing

  • Advanced color management: Custom color profiles and color replacement for precise prints.
  • White base optimization: Automatic and optimized generation of the white base for transparent or dark materials.
  • Template function: Virtually divides the print bed into panels for precise placement, reducing errors and waste.
  • Versatility: Support for spot channels, variable data management, hotfolders, and label creation.
WhiteRIP 8 software package for professional printing, with WRip logo and coloured graphics on transparent background

Custom Printers

We can create custom printers to meet specific workflow needs, integrate with automatic printing lines, support loading/unloading systems, or handle extra-large materials.

Learn more
UV flatbed printer with suction cup system for securing material during printing.

Eagle 130 UV with vacuum cups

Printer with suction cups for securing and straightening panels
More information
Industrial roll-to-roll UV printer with winding system, prints on multiple rolls simultaneously.

Eagle 130 UV
Roll to Roll

UV printer with flatbed and roll-to-roll printing
More information
Ser.Tec hybrid printer. Eagle 70 HY with dual moving platens for UV printing

Eagle 130 HY with custom bed

Large-format printer with extended flatbed
More information

Not sure if there’s a market for your product?

Test it with samples and small batches before purchasing the machine

Discover the MVP service

Request more information

ATOM 2513 industrial UV printer, viewed from an angle, with a grey frame and a large printing bed.
