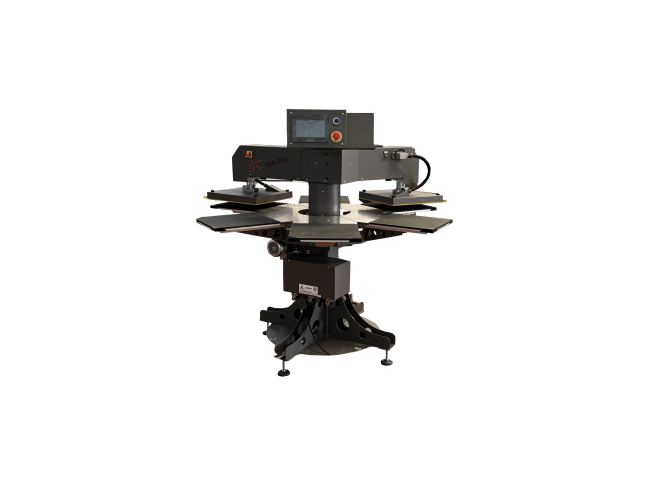

Rotopress P2-6T Auto

Automatic press with 6 rotating plates and 2 heating heads.
Perfect for those seeking uncompromised productivity in industries such as fashion, customization, and textile printing.

Dual Heating Heads: Enables transferring materials in half the time, doubling hourly production.
Sliding and customizable plates: Suitable for all types of formats and easy to use thanks to the integrated rails.
Automatic loading, peeling, and unloading systems.

System

A.T.P

The A.T.P. is an automatic system for loading transfer films with a storage capacity of up to 600 pieces and a motorized pallet for formats ranging from 50x50 mm to 380x400 mm.

S.T.A

The S.T.A. is an advanced pneumatic system for the automatic removal of the transfer after pressing, along with a disposal system.

R.A.T

The R.A.T. is an automatic fabric unloading system that removes the material from the press plate after the pressing process.

Features

Six automatic rotating tables: Efficient design that facilitates continuous operation.
Plate Dimensions: 40 x 38 cm.
Customizable Settings: Adjustable temperature (up to 210°C), timing, and pressure.
Power Consumption: Operates on 230V 50Hz electrical supply, with a consumption of 6 KW, and pneumatic supply at 6 Bar.

Technical specifications


Plate Size	38x40 cm
Max. Temperature	210 °C
Consumption	6 Kw
Power Supply	230 – 400 V 50Hz
Pneumatic Supply	6 Bar
Hz	50/60 Hz
Weight	300 Kg
