EAGLE 70/130R XL UV

Eagle 70/130R XL is the new large-format digital printer from the Eagle line, with a printing area of 1300mmx3000mm and an adjustable printing height of up to 20 cm.

  • Material versatility: Printing on rigid and flexible materials, both transparent and opaque.
  • Inks: Available in UV and Hybrid versions, designed to ensure high quality, durability, and excellent adhesion on a wide range of rigid and flexible materials.
  • Ease of use: Intuitive control via touch screen and job management with WhiteRIP & Icaro software.
  • High table capacity: Supports materials up to 100 kg, making it ideal for industrial applications.
Learn more
SER.TEC. Eagle 130 RXL industrial UV printer with large print bed and black frame for large formats.

Ricoh Gen 5

Technical Specifications

It operates on three open sides, making it ideal for bulky and heavy items

Up to 20 cm (standard) and 80 cm (custom) for items of all sizes

WhiteRIP is professional print management software

Suction table, conveyor belt, corner squaring and Industry 4.0 package

Optional

Dettaglio dei perni di registro su piano di stampa, utilizzati per allineamento preciso del materiale.

The squaring aligns the material to the table in just a few moments. Height-adjustable and can be lowered when not in use

Schema con frecce a doppia punta di lunghezze crescenti, indica le dimensioni personalizzabili del piano di stampa

Printing on extra-large materials with Eagle XL: customisable length from 2.5 m to suit your needs

Piano aspirato con microfori per il bloccaggio del materiale durante la stampa

Eagle printers feature a vacuum table that prevents warping during printing

Can be integrated with automatic loading/unloading systems

Eagle printers can be fitted with a conveyor belt for in-line production, including a vacuum-assisted version

The printers can be configured to integrate seamlessly into Industry 4.0 systems

Eagle 130 R UV XL: The revolution in wood panel printing.

  • The Eagle 130 R UV XL combines high performance and speed, delivering outstanding results in wood panel printing.

  • Thanks to UV technology, it delivers exceptional print quality with precise details and vibrant colors.

  • The large-format printing capability allows simple wooden panels to be transformed into true works of art.

  • With an optimized process, this machine represents the future of wood printing, combining creativity and productivity.

Technical specifications
Printing Technology
Up to 8 Ricoh Gen 5 printheads.
Resolutions
1200 x 2400 dpi
Maximum printing area:
1300 x 3000mm
Maximum Material Thickness
200mm
Maximum load:
100 Kg
Inks
UV Led | Hybrid
Printhead settings:
CMYK, White, Varnish
Industrial UV printer that prints warning messages onto wooden panels.

Available Inks

UV LED inks (this version)

Designed to deliver high-quality prints on a wide range of materials, these inks are weather-resistant, feature vibrant colours and provide excellent white coverage on transparent or dark substrates. The semi-flexible inks allow printing on both rigid and flexible surfaces, including plastics and leather. The recirculation system prevents sedimentation

Hybrid inks (alternative version)

Ideal for printing on complex materials such as metal, glass and leather. By ensuring superior print quality, they deliver excellent results on both rigid and flexible surfaces. The ink recirculation system prevents sedimentation, reducing maintenance and optimising the production process
UV print on wood with tiger image in warm colours and natural texture.
UV print with relief effect of black stylised flowers on a beige background.
Blue nameplate with 3D effect embossed UV print, decorated with a detailed white mandala motif.
Decorative panel in the kitchen with a high-definition print of a landscape at sunset, installed as a back panel behind the cooker.
Kitchen wall covering with coloured tile-effect print, applied to wall between hob and wall units.
Detail of glass table with digital print of stylised butterfly in shades of blue and violet.

Software

The Eagle 70/130R XL is equipped with WhiteRIP software, designed to maximize productivity and precision in industrial printing.

  • White base optimization: Automatic and optimized generation of the white base for dark or transparent materials.
  • Advanced color management: Support for custom color profiles, spot channels, and variable data management.
  • Template function: Divides the print bed into panels for precise placement, reducing ink and material waste.
  • Operational versatility: Integration with hotfolders, label creation, and support for special effects such as braille and 3D.

Thanks to its intuitive interface and the ability to send jobs directly from the print queue, the software simplifies process management, optimizing time and resources.

WhiteRIP 8 software package for professional printing, with WRip logo and coloured graphics on transparent background

Custom Printers

We can create custom printers to meet specific workflow needs, integrate with automatic printing lines, support loading/unloading systems, or handle extra-large materials.

Learn more

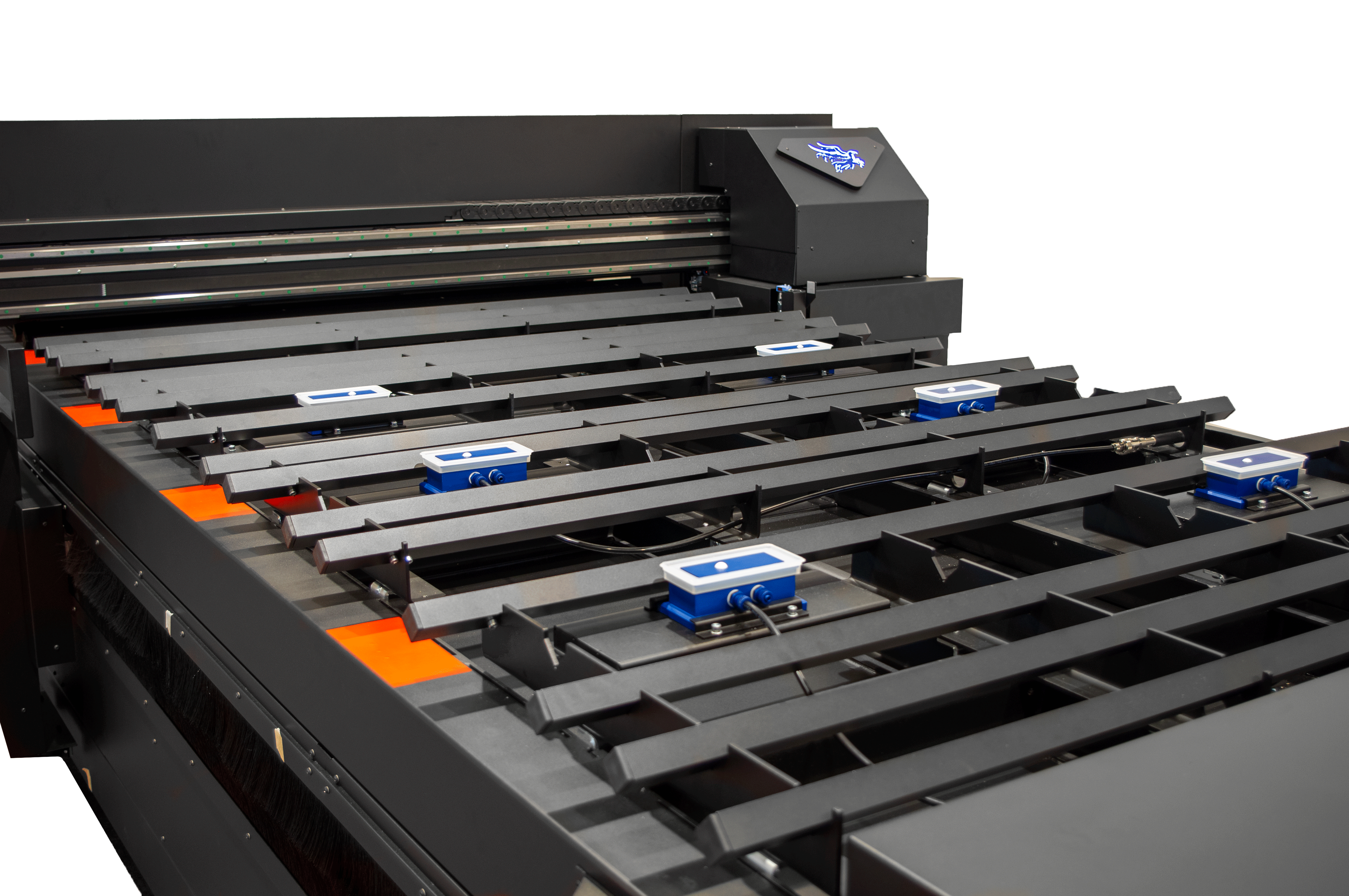

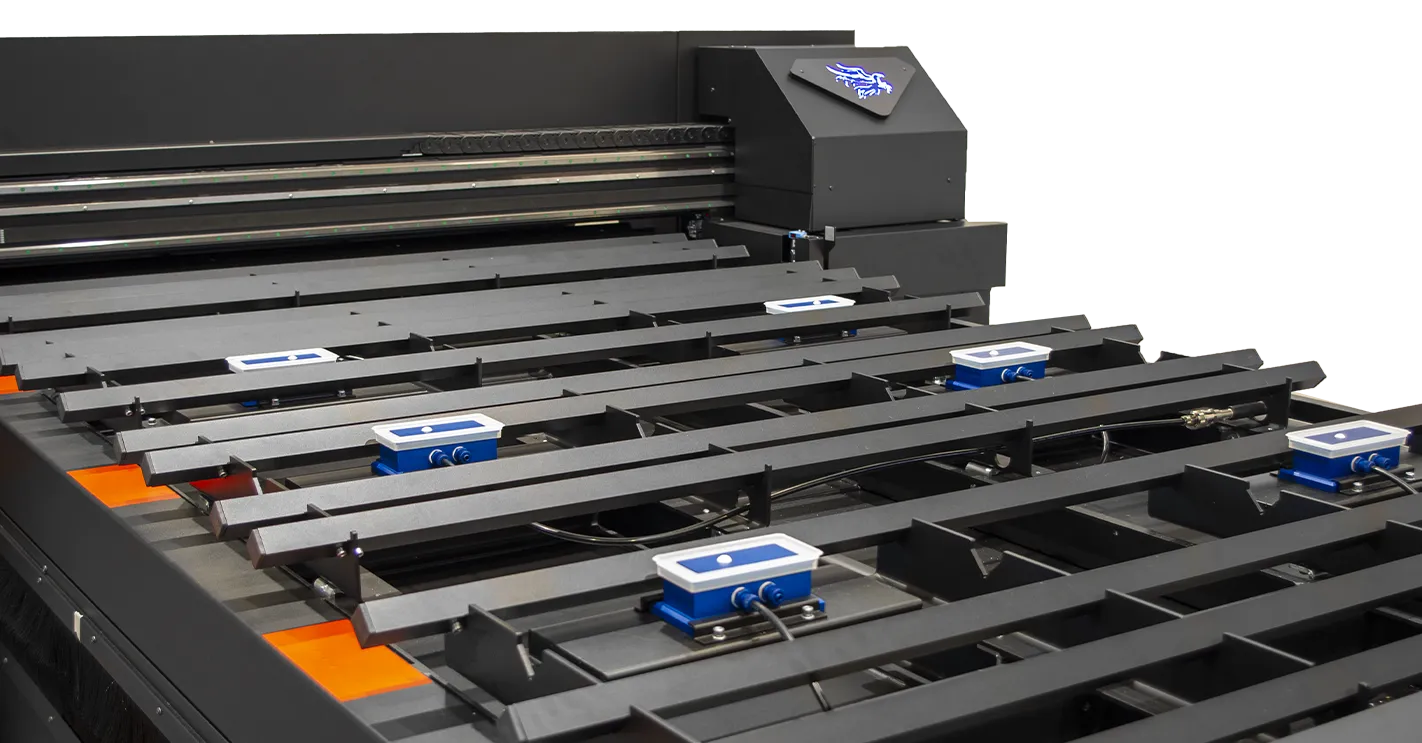

UV flatbed printer with suction cup system for securing material during printing.

Eagle 130 UV with vacuum cups

Printer with suction cups for securing and straightening panels
More information
Ser.Tec. UV printer configured for printing on colored gas cylinders of different sizes.

Eagle
Automation 1

Printer for cylinders of various sizes and weights
Learn more
Industrial roll-to-roll UV printer with winding system, prints on multiple rolls simultaneously.

Eagle 130 UV
Roll to Roll

UV printer with flatbed and roll-to-roll printing
More information

Not sure if there’s a market for your product?

Test it with samples and small batches before purchasing the machine

Discover the MVP service
