Eagle R360

The EAGLE R360 is a UV LED printer designed for direct printing onto cylindrical and conical objects, such as bottles, flasks, cans, cosmetic bottles and glasses

  • Direct printing on cylindrical and conical objects (up to 15°): Ideal for bottles, flasks, cans, cosmetic bottles and glasses
  • Compatibility with different materials: Printing on glass, paper, plastic, metal
  • Operational efficiency: The “Shuttle” system reduces loading and set-up times, optimising daily productivity
  • “Shuttle” system for rapid loading: Reduces set-up times and simplifies daily multi-setup
Learn more
Eagle R360 printer for direct-to-shape printing on bottles and cylindrical objects

Ricoh Gen 5

Shuttle System

Touch Screen

Technical Specifications

Direct 360° printing on cylinders and cones, for maximum customisation

Diameters 45–180 mm, suitable for multiple materials, compatible with automated systems

Professional software for print management and 3D previews

Touchscreen monitor for simple and intuitive operation

Optional

Customised configuration of diameters and tapers to meet customer specifications

Can be integrated with automatic loading/unloading systems

The printers can be configured to integrate seamlessly into Industry 4.0 systems

Advanced Performance and Features for UV LED Printing:

  • The Ricoh G5 print heads provide superior quality and coverage compared to traditional print heads.

  • With the shuttle system, rapid loading reduces operational time, improving production flexibility.

  • The modular system and tiltable guide make setup easier for conical materials.

  • Icaro and WhiteRip allow adjusting colors, speed, and advanced parameters for each print.

Technical specifications
Printing Technology
Ricoh Gen 5 printheads
Max. resolution
2400 dpi
Max. width
200mm
Diameter
45-180mm
Inks
UV Led
Available colors
CMYK W Spot
Consumption
1.5 Kw
Power Supply
AC 240V 50/60Hz
Operating environment
20-25°C Relative humidity 15-20%

Available Inks

UV LED inks

Designed to deliver high-quality prints on a wide range of materials, these inks are weather-resistant, feature vibrant colours and provide excellent white coverage on transparent or dark substrates. The semi-flexible inks allow printing on both rigid and flexible surfaces, including plastics and leather. The recirculation system prevents sedimentation

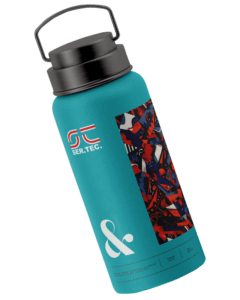

direct-to-shape printing on customised steel water bottle

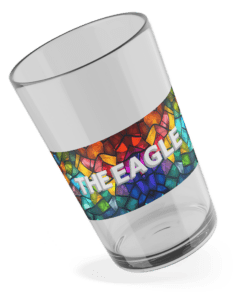

direct-to-shape printing on glass cups with customised graphics

Software

Eagle R360 is equipped with the software EagleRIP designed to maximize productivity and accuracy in industrial printing on cylindrical and conical objects

  • 3D visualisation: Checking the positioning of graphics in a three-dimensional preview before RIP
  • White base optimisation: Automatic and optimised generation of the white base for dark or transparent materials
  • Advanced colour management: Support for custom colour profiles, spot channels and variable data management
  • Operational versatility: Integration with hotfolders, label creation and support for special effects such as Braille and 3D

Thanks to its intuitive interface and the ability to send jobs directly from the print queue, the software simplifies process management, optimising time and resources.

Monitor with graphic RIP software for digital printing, active interface on project with contacts and social media Ser.Tec

360 SERIES

Ser.Tec.’s 360 series offers complete solutions for Direct-to-Shape printing on cylindrical and conical objects, from laboratory to industry

Gamma Ser-Tec Serie 360: stampanti industriali Mini 360, Eagle R360 e R360 2P a confronto
Mini 360 UV printer for direct-to-shape printing on cylindrical objects

Mini 360

Digital Printing on Cylindrical and Conical Objects
Learn more
Eagle R360 2P industrial printer for direct-to-shape printing on cylindrical packaging

Eagle R360 2P

Digital Printing on Cylindrical and Conical Objects
Learn more
automatic system for direct-to-shape printing on heavy cylindrical objects

Eagle R360 2P Auto

Digital Printing on Cylindrical and Conical Objects
More information

Custom Printers

We can create custom printers to meet specific workflow needs, integrate with automatic printing lines, support loading/unloading systems, or handle extra-large materials.

Learn more
Ser.Tec. UV printer configured for printing on colored gas cylinders of different sizes.

Eagle Automation 1

Printer for cylinders of various sizes and weights
Learn more
